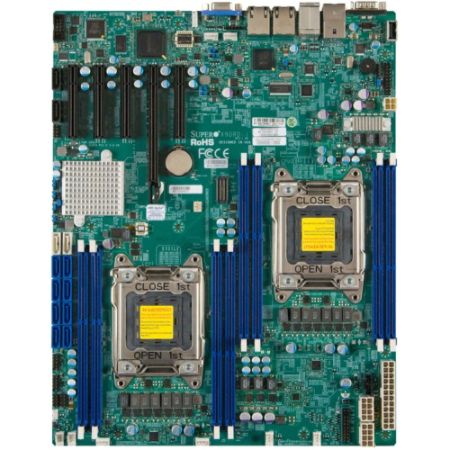

Supermicro X9DRD-iF Desktop Motherboard - Intel C602 Chipset - Socket R LGA-2011 - Retail Pack Item # 793687
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
793687
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
Supermicro's X9 serverboards offer the high levels of performance, efficiency and scalability in the industry. The Supermicro X9 serverboards are available in a variety of architectures including twin and fat twin, GPU supercomputer, data center optimized, SuperServer advantage, I/O optimized, superworkstation, and superstorage solutions. The serverboards offers numerous advantages including up to 768 GB of Reg. ECC DDR3-1600 MHz memory in 24 DIMM slots, SATA 3.0 and SAS 2.0 HDD support, ConnectX FDR/QDR InfiniBand ports, dual 10 Gigabit Ethernet, Quad Ethernet LAN, PCI-E 3.0 technology, IPMI 2.0, and Intel Xeon processor E5-2600/1600 family for high performance. With this X9 Serverboard Platform Supermicro offers the most extensive selection of solutions for data center, enterprise IT, cloud computing, graphics, technical computing, and HPC environments.
Product Details
| Item # | 793687 |
| Manufacturer # | 11617233 |
| Number of SATA Interfaces | 10 |
| Hardware Features | Diagnostic LEDs, chassis intrusion detection, Watch Dog Timer |
| Onboard LEDs Header | Yes |
| Power Supply Supported | EPS12V |
| Memory Speed Supported | 1.60 GHz; 1.33 GHz; 1.07 GHz; 800 MHz |
| Certifications & Standards | ACPI; ACPI 2.0; ACPI 3.0; ACPI 4.0 |
| Compatible Processors | Xeon E5-2600 series |
| Number of Network (RJ-45) Ports | 3 |
| BIOS Type | AMI |
| Internal Interfaces | 2 x USB 2.0 ¦ 1 x USB 2.0 - Type A |
| Registered or Buffered | Registered |
| Graphics Controller Manufacturer | Matrox |
| Audio Line In | No |
| Storage Interfaces | SATA-300 - connector(s): 4 x 7pin Serial ATA - 4 device(s) - RAID 0 / RAID 1 / RAID 10 / RAID 5 ¦ SATA-600 - connector(s): 2 x 7pin Serial ATA - 2 device(s) - RAID 0 / RAID 1 / RAID 10 / RAID 5 |
| Number of PCI Express x16 Slots | 1 |
| Total Processor Supported | 2 |
| Total Number of PCI Express Slots | 5 |
| 64-bit Processing | Yes |
| Bus Clock | 1600 MHz, 1333 MHz, 1066 MHz, 800 MHz |
| VGA | Yes |
| Max Processors Qty | 2 |
| RAID Supported | Yes |
| brand name | Supermicro |
| Hardware Monitoring | CPU core temperature, chassis temperature, CPU fan tachometer, chassis fan tachometer, system voltage, CPU core voltage |
| Network Controller | Intel I350 |
| Number of USB 2.0 Ports | 4 |
| Package Type | Retail |
| Memory Form Factor | RDIMM; UDIMM |
| Processor Socket | LGA2011 Socket |
| Chipset Model | C602 |
| Graphics Controller Model | G200 |
| Onboard Video | On-board Video Chipset |
| PCI Express Standard | PCI Express 3.0 |
| QuickPath Interconnect | 8 GT/s |
| Number of PCI Express x8 Slots | 4 |
| Total Number of Onboard USB Ports | 5 |
| RAID Levels | 0; 1; 5; 1+0 |
| Processor Supported | Xeon |
| BIOS Features | APM 1.2 support, ACPI 1.0 support, DMI 2.3 support, ACPI 2.0 support, SMBIOS 2.3 support, IPMI support, ACPI 3.0 support, UEFI BIOS, ACPI 4.0 support |
| Total Number of USB Ports | 4 |
| Serial Port | Yes |
| width | 10.3 in |
| Number of Memory Slots | 8 |
| depth | 13 in |
| Product Name | X9DRD-iF Server Motherboard |
| manufacturer | Supermicro Computer, Inc |
| Data Bus Transfer Rate | 8 GT/s |
| Audio Line Out | No |
| Max Size | 256 GB |
| Maximum Memory | 256 GB |
| Supported RAM Integrity Check | ECC |
| controller type | Serial ATA/600; Serial ATA/300 |
| Number of Onboard USB 2.0 Ports | 5 |
| Gigabit Ethernet | Yes |
| Network (RJ-45) | Yes |
| Microphone Port | No |
| Graphics Controller | Matrox G200 |
| Onboard Serial Header | Yes |
| Memory Standard | DDR3-1600/PC3-12800; DDR3-1333/PC3-10600; DDR3-1066/PC3-8500; DDR3-800/PC3-6400 |
| Number of Total Expansion Slots | 5 |
| Chipset Manufacturer | Intel |
| form factor | Extended ATX |
| Memory Technology | DDR3 SDRAM |
| warranty length | 3-year limited |
| model name | X9DRD-iF |
